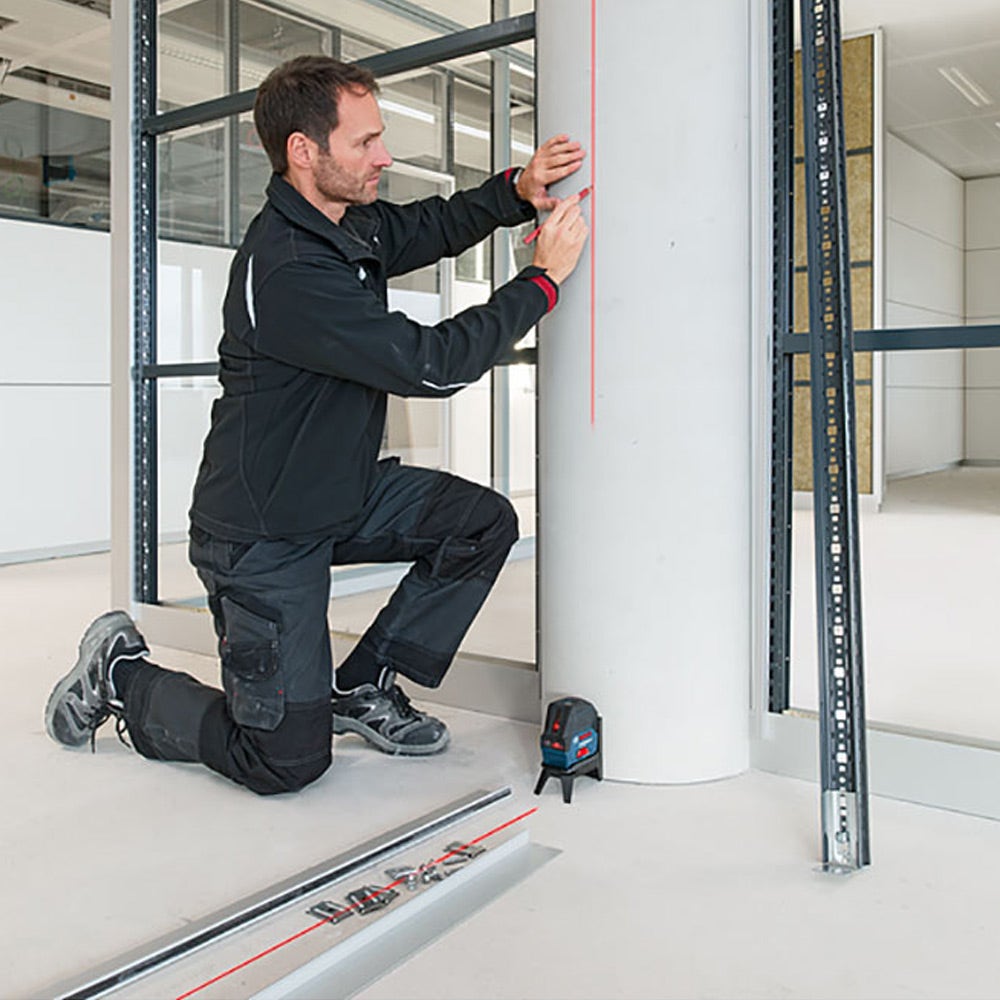

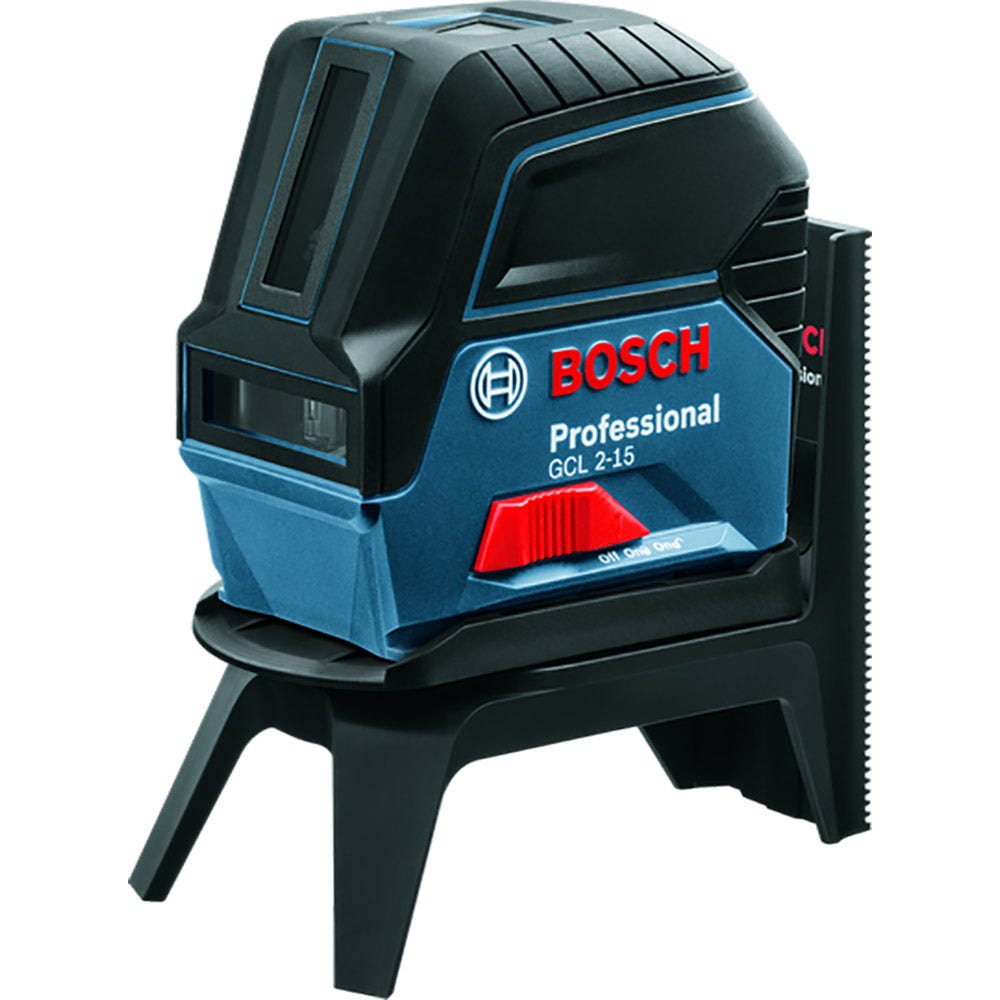

Compact and versatile for all short-distance levelling applications

• Horizontal and vertical laser lines and two centred plumb points with optimal visibility
• Laser lines can be positioned around the centred plumb points
• Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
• Pendulum lock ensures safe transport
• Easy handling due to single-handed operation and intuitive user interface
• Line and point mode freely selectable
• Horizontal and vertical self-levelling up to ±4°

Specifications:

• Laser diode: 630 – 650 nm, < 1mW
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 70 °C
• Working range of laser points, max.: 10 m (top) , 10 m (bottom)
• Self-levelling range: ± 4°
• Levelling time: 4 s
• Power supply: 3 x 1.5 V LR6 (AA)
• Operating time (max.):
  • 6 h in cross line and point mode
  • 8 h in cross line mode
  • 12 h in line and point mode
  • 16 h in line mode
  • 22 h in point mode
• Tripod thread: 1/4inch, 5/8inch
• Projection: 2 lines / 2 points
• Plumb point accuracy: ± 0.7 mm/m
